Maximum Power at STC (Pmax)

300W

Optimum Operating Voltage (Vmp)

36 V

Open - Circuit Voltage (Voc)

43.2V

Optimum Operating Current (Imp)

8.33 A

Short - Circuit Current (Isc)

9.17 A

Cell Efficiency

16 %

Operating Module Temperature

-40 °C to +85 °C

Maximum System Voltage

1000 V DC (IEC) / 600 V DC (UL)

Diodes

3 by pass

Power Tolerance

-3/+3 %

No. of Cells

72(6× 12)

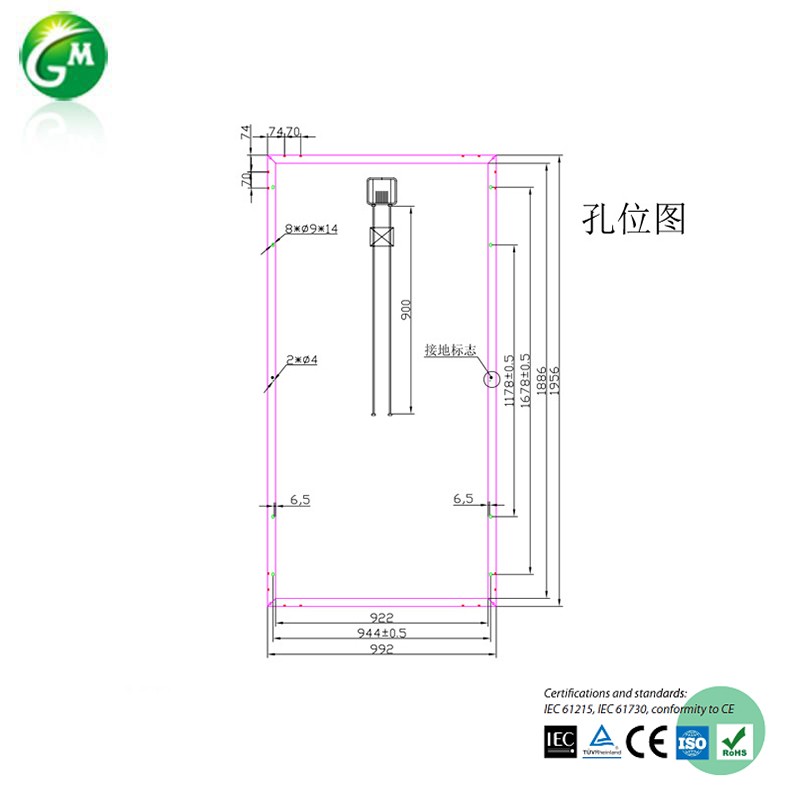

Dimensions

1956*992*45 mm

Weight

26Kgs

Front Glass

3.2 mm (0.13 inches) tempered glass

Frame

Anodized aluminum alloy

Junction Box

IP65 rated

Output Cables

TUV

4.0 mm2 (0.16inches2), symmetrical lengths (-) 900 mm (35.4 inches) and (+) 900 mm (35.4inches)

Connectors

RADOX? SOLAR integrated twist locking connectors

Temperature Coefficient of Pmax

-0.47%/℃

Temperature Coefficient of Voc

-0.34%/℃

Temperature Coefficient of Isc

0.045%/℃

Pieces per pallet

30

30

Pallets per container

5

10

Pieces per container

150

300

Singfo Solar modules will last for at least 25 years.

Free from defects in material and workmanship for 5 years.

All the panels passed IEC, TUV standards.

Power warranty:

Maintain more than 90% of minimum rated power for 10 years.

Maintain more than 80% of minimum rated power for 25 years.
