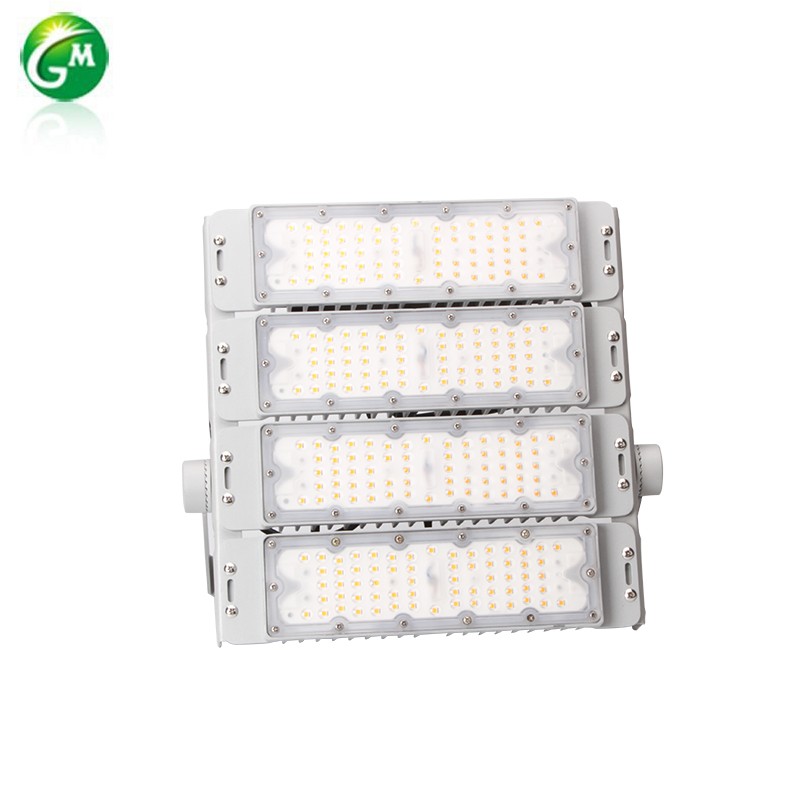

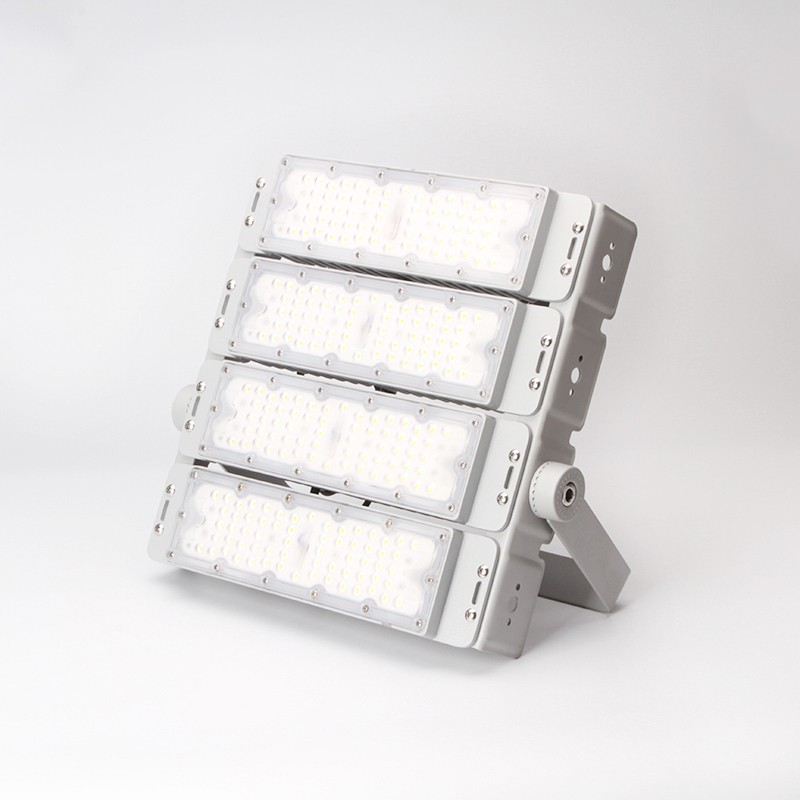

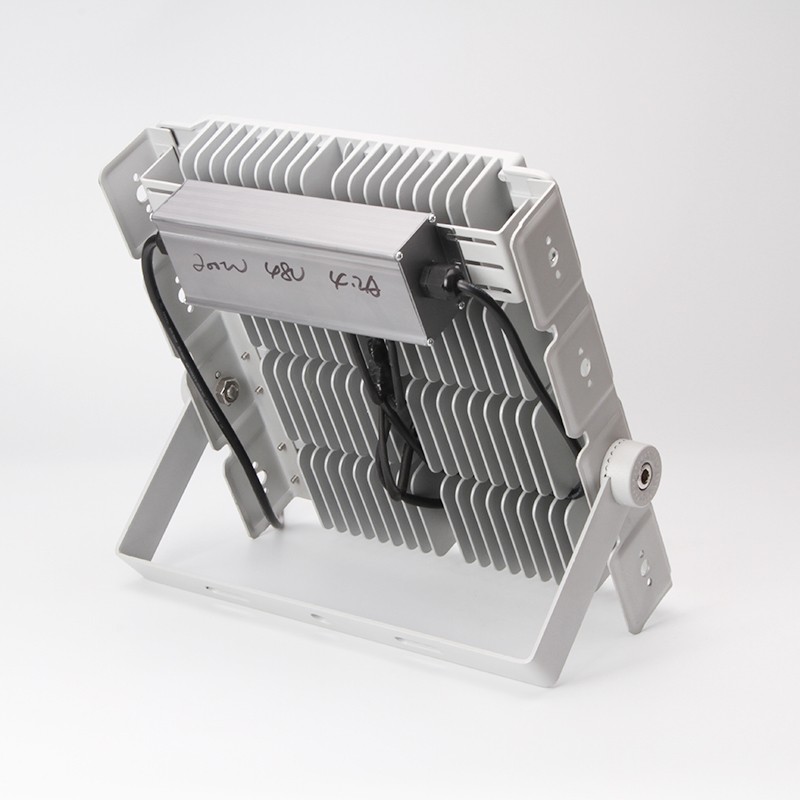

LED light GMTGDD301
2019-01-15 1305
| Place of origin | Zhongshan, Guangdong | model | GMTGDD301 | specification | L410*W350*H75MM |
| Brand | BASUN/Wide Beauty | Input voltage | AC85-265V | Output current | 4600mA ±5% |
| power | 200W | light source | 3030 256L | colour | W/WW |
Protection level | IP65 | Beam angle | 90° | Application range | Products used in bridges, hotels, buildings, parks, plazas and lakeside parks, etc. |
Light distribution curve | IES | New time | 2018年 |
| Place of origin | Zhongshan, Guangdong | model | GMTGDD302 | specification | L485*W350*H75MM |
| Brand | BASUN/Wide Beauty | Input voltage | AC85-265V | Output current | 6200mA ±5% |
| power | 250W | light source | 3030 320L | colour | W/WW |
Protection level | IP65 | Beam angle | 90° | Application range | Products used in bridges, hotels, buildings, parks, plazas and lakeside parks, etc. |
Light distribution curve | IES | New time | 2018年 |
| Place of origin | Zhongshan, Guangdong | model | GMTGDD303 | specification | L575*W350*H75MM |
| Brand | BASUN/Wide Beauty | Input voltage | AC85-265V | Output current | 7500mA ±5% |
| power | 300W | light source | 3030 384L | colour | W/WW |
Protection level | IP65 | Beam angle | 90° | Application range | Products used in bridges, hotels, buildings, parks, plazas and lakeside parks, etc. |
Light distribution curve | IES | New time | 2018年 |
| Place of origin | Zhongshan, Guangdong | model | GMTGDD304 | specification | L410*W700*H75MM |
| Brand | BASUN/Wide Beauty | Input voltage | AC85-265V | Output current | 8300mA ±5% |
| power | 400W | light source | 3030 512L | colour | W/WW |
Protection level | IP65 | Beam angle | 90° | Application range | Products used in bridges, hotels, buildings, parks, plazas and lakeside parks, etc. |
Light distribution curve | IES | New time | 2018年 |
| Place of origin | Zhongshan, Guangdong | model | GMTGDD305 | specification | L485*W700*H75MM |
| Brand | BASUN/Wide Beauty | Input voltage | AC85-265V | Output current | 12.4A ±5% |
| power | 500W | light source | 3030 640L | colour | W/WW |
Protection level | IP65 | Beam angle | 90° | Application range | Products used in bridges, hotels, buildings, parks, plazas and lakeside parks, etc. |
Light distribution curve | IES | New time | 2018年 |
| Place of origin | Zhongshan, Guangdong | model | GMTGDD306 | specification | L575*W700*H75MM |
| Brand | BASUN/Wide Beauty | Input voltage | AC85-265V | Output current | 15.0A ±5% |
| power | 600W | light source | 3030 768L | colour | W/WW |
Protection level | IP65 | Beam angle | 90° | Application range | Products used in bridges, hotels, buildings, parks, plazas and lakeside parks, etc. |
Light distribution curve | IES | New time | 2018年 |
